How To Install Webmin And Secure With Apache On Ubuntu 20.04 LTS
How To Install Webmin And Secure With Apache On Ubuntu 20.04 LTS
June 16, 2020

Webmin is one of the popular web-based system administration interfaces for Unix. We can manage the system services using the appropriate Webmin modules. The popular and official modules available for Webmin includes cron, bind8, apache, mysql, dovecot, postfix, postgrey, fail2ban, and syslog. We can install these modules based on the actual needs and manage the associated services from the Webmin itself without using the shell. Webmin makes it easy to administer the system using the graphical interface. The most recent version of Webmin while writing this tutorial is 1.941. We will install the same as part of this tutorial.

The tutorial provides the steps required to install Webmin on the popular Linux distribution Ubuntu and access it via Apache by configuring it as a reverse proxy. In this way, we will install Webmin and access it via Apache over the standard HTTP/HTTPS ports. It provides all the steps required to install and use Webmin on Ubuntu 20.04 LTS. The steps should be similar for other Linux systems and Ubuntu versions.

You may also follow the relevant tutorials including How To Install Apache 2 On Ubuntu 20.04 LTSConfigure Virtual Host On Apache, and How To Install Let's Encrypt For Apache On Ubuntu.

Prerequisites

Ubuntu Server - This tutorial assumes that you have already installed Ubuntu 20.04 LTS desktop or server version either for local or production usage. You can follow Install Ubuntu 20.04 LTS Desktop, Install Ubuntu 20.04 LTS On Windows Using VMware, and Spin Up Ubuntu 20.04 LTS Server On Amazon EC2 to install Ubuntu 20.04 LTS. It also assumes that you have either root privileges or a regular user with sudo privileges.

Apache Web Server - It assumes that the Apache is already installed on the system and it's configured properly to access the Virtual Host using the domain name. It can be easily done on your local system in case you have a static IP address. You can also follow How To Install Apache 2 On Ubuntu 20.04 LTS to install the Apache Web Server.

Firewall - Make sure that the ports 80 and 443 are open.

Domain - You must also own a domain to continue with this tutorial. It assumes that the domain record is configured for the server and it's pointing to the correct IP address.

Apache Modules - As part of this tutorial, also make sure that the appropriate apache modules are enabled as shown below.

# Enable rewrite module
sudo a2enmod rewrite

# Enable SSL module
sudo a2enmod ssl

# Enable Proxy module
sudo a2enmod proxy_http

# Restart Apache
sudo systemctl restart apache2

Add Virtual Host

In this section, we will add the virtual host and enable it to access the application using the domain. You may skip this step in case you already have an active website or application accessible from the browser using the domain name.

Add the Virtual Host to the Apache Web Server and update it as shown below. I have used the nano editor for demonstration purposes. You can use any editor of your choice. Also, replace example.com with the actual domain. Create the directory /var/www/example.com/html to store the website or application files and /var/www/example.com/logs for website specific logs.

# Add Virtual Host
sudo nano /etc/apache2/sites-available/example.com.conf

# Content
<VirtualHost *:80>
ServerName example.com
ServerAlias www.example.com
ServerAdmin admin@example.com

DocumentRoot /var/www/example.com/html
<Directory /var/www/example.com/html>
Options -Indexes +FollowSymLinks
DirectoryIndex index.html
AllowOverride All
Require all granted
</Directory>

ErrorLog /var/www/example.com/logs/error.log
CustomLog /var/www/example.com/logs/access.log combined
</VirtualHost>

# Save and exit the editor

Save the file using the nano text editor by pressing CTRL + O, then press Enter to write the file. Press CTRL + X to close the editor. Now enable the virtual host as shown below. Make sure that the directory /var/www/example.com/html and /var/www/example.com/logs exists.

# Create directories
sudo mkdir -p /var/www/example.com/html
sudo mkdir -p /var/www/example.com/logs

# Optionally disable default configuration
sudo a2dissite 000-default

# Test configuration
sudo apache2ctl configtest

# Output
Syntax OK

# Enable virtual host
sudo a2ensite example.com

# Output
Enabling site example.com.
To activate the new configuration, you need to run:
systemctl reload apache2

# Test configuration
sudo apache2ctl configtest

# Output
Syntax OK

# Reload Apache
sudo systemctl reload apache2

Now add the index.html file having content as shown below.

# Add index.html
sudo nano /var/www/example.com/html/index.html

# Content
<!DOCTYPE html>
<html lang="en">
<head>
<title>My Domain</title>
</head>
<body>
<h1>Welcome to My Domain.</h1>
</body>
</html>

# Save and exit the editor

If your domain is correctly pointing to your system, you must be able to access it from the browser by navigating to http://www.example.com/index.html. It should show the output of our simple HTML file - Welcome to My Domain.

Install Certbot

In this section, we will install the most recent version of Certbot for Apache Web Server on Ubuntu 20.04 LTS from the Ubuntu repositories. Now refresh the packages index using the command as shown below.

# Refresh packages index
sudo apt-get update

We can install the Certbot using the command as shown below.

# Install Let's Encrypt
sudo apt-get install python3-certbot-apache

# Installation results
...
...
Setting up python3-certbot (0.40.0-1) ...
Setting up certbot (0.40.0-1) ...
Created symlink /etc/systemd/system/timers.target.wants/certbot.timer → /lib/systemd/system/certbot.timer.
Setting up python3-certbot-apache (0.39.0-1) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for libc-bin (2.31-0ubuntu9) ...

We can confirm the installation by checking the Certbot version as shown below.

# Check Certbot version
certbot --version

# Output
certbot 0.40.0

This completes the installation of Certbot for Apache Web Server on Ubuntu 20.04 LTS.

Install SSL Certificate and Secure Virtual Host

In this section, we will install the SSL certificate and secure the virtual host. It can be done using the command as shown below.

# Install Certificate - Syntax - Single Domain
sudo letsencrypt --apache -d <domain 1> --email <email address>

# Install Certificate - Syntax - Multiple Domains
sudo letsencrypt --apache -d <domain 1>,<domain 2>,<domain 3> --email <email address>

# Example
sudo letsencrypt --apache -d example.com,www.example.com --email admin@example.com

# Agree - Press A and Enter - First time only
Saving debug log to /var/log/letsencrypt/letsencrypt.log
Plugins selected: Authenticator apache, Installer apache

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Please read the Terms of Service at
https://letsencrypt.org/documents/LE-SA-v1.2-November-15-2017.pdf. You must
agree in order to register with the ACME server at
https://acme-v02.api.letsencrypt.org/directory
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(A)gree/(C)ancel: A

# Share Email for communication - Press Y and Enter
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Would you be willing to share your email address with the Electronic Frontier
Foundation, a founding partner of the Let's Encrypt project and the non-profit
organization that develops Certbot? We'd like to send you email about our work
encrypting the web, EFF news, campaigns, and ways to support digital freedom.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(Y)es/(N)o: Y

# Choose redirect options - redirect
Please choose whether or not to redirect HTTP traffic to HTTPS, removing HTTP access.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1: No redirect - Make no further changes to the webserver configuration.
2: Redirect - Make all requests redirect to secure HTTPS access. Choose this for
new sites, or if you're confident your site works on HTTPS. You can undo this
change by editing your web server's configuration.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Select the appropriate number [1-2] then [enter] (press 'c' to cancel): 2

# Certificate installed successfully
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Congratulations! You have successfully enabled https://example.com

You should test your configuration at:
https://www.ssllabs.com/ssltest/analyze.html?d=example.com
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

IMPORTANT NOTES:
- Congratulations! Your certificate and chain have been saved at:
/etc/letsencrypt/live/example.com/fullchain.pem
Your key file has been saved at:
/etc/letsencrypt/live/example.com/privkey.pem
Your cert will expire on 2020-09-14. To obtain a new or tweaked
version of this certificate in the future, simply run certbot again
with the "certonly" option. To non-interactively renew *all* of
your certificates, run "certbot renew"
- Your account credentials have been saved in your Certbot
configuration directory at /etc/letsencrypt. You should make a
secure backup of this folder now. This configuration directory will
also contain certificates and private keys obtained by Certbot so
making regular backups of this folder is ideal.
- If you like Certbot, please consider supporting our work by:

Donating to ISRG / Let's Encrypt: https://letsencrypt.org/donate
Donating to EFF: https://eff.org/donate-le

- We were unable to subscribe you the EFF mailing list because your
e-mail address appears to be invalid. You can try again later by
visiting https://act.eff.org.

This completes the installation of SSL certificate for example.com. It also create another virtual host at /etc/apache2/sites-available/example.com-le-ssl.conf and enable it to enforce the strict HTTPS protocol. Now if you try to open the URL - http://www.example.com/index.html, it must redirect you to https://www.example.com/index.html. Make sure that your firewall allows communication on port 443.

This is how we can secure an entire website or application using the SSL certificate for secure communication between the Apache Web Server and the clients(Browser etc). Now if you again open the virtual host file, you must see the redirection lines at the bottom of your host.

# Check Virtual Host
sudo nano /etc/apache2/sites-available/example.com.conf


# Scroll down
....
....
RewriteEngine on
RewriteCond %{SERVER_NAME} =www.example.com
RewriteRule ^ https://%{SERVER_NAME}%{REQUEST_URI} [END,NE,R=permanent]
</VirtualHost>

The rewrite rule redirects all the HTTP requests to HTTPS. The Certbot client also creates the SSL virtual host and enable it as part of the SSL installation process. You can check it's content as shown below.

# Check SSL Virtual Host
sudo nano /etc/apache2/sites-available/example.com-le-ssl.conf


# Content
<IfModule mod_ssl.c>
<VirtualHost *:443>
ServerName example.com
ServerAlias www.example.com
ServerAdmin admin@example.com

DocumentRoot /var/www/example.com/html
<Directory /var/www/example.com/html>
Options -Indexes +FollowSymLinks
DirectoryIndex index.php
AllowOverride All
Require all granted
</Directory>

ErrorLog /var/www/example.com/logs/error.log
CustomLog /var/www/example.com/logs/access.log combined

SSLCertificateFile /etc/letsencrypt/live/example.com/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/example.com/privkey.pem
Include /etc/letsencrypt/options-ssl-apache.conf
</VirtualHost>
</IfModule>

The Certbot configures the SSL virtual host as shown above.

Auto-Renewal

The SSL certificates issued by Let's Encrypt expires after 90 days from the date of installation. The Certbot installed by us checks for renewal twice a day using the system timer. The auto-renewal feature on non systemd timer is provided by a cron script placed in /etc/cron.d. It renews the certificates that are about to expire in the next 30 days.

You can also test the renewal process by simulating the renewal command as shown below.

# Simulate renewal command
sudo certbot renew --dry-run

The above command will show the logs having messages to get an idea about how it will be run for actual renewal. We can also run the command manually to renew the certificates that are about to expire in the next 30 days.

# Renew certificates
sudo certbot renew

# Output

Saving debug log to /var/log/letsencrypt/letsencrypt.log

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Processing /etc/letsencrypt/renewal/example.com.conf
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Cert not yet due for renewal

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The following certs are not due for renewal yet:
/etc/letsencrypt/live/example.com/fullchain.pem expires on 2020-09-14 (skipped)
No renewals were attempted.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The Apache service must be reloaded after certificate renewal. We can do it by appending --renew-hook "systemctl reload apache2" to the /etc/cron.d/certbot file as shown below.

# Append renew hook
0 */12 * * * root test -x /usr/bin/certbot -a \! -d /run/systemd/system && perl -e 'sleep int(rand(43200))' && certbot -q renew --renew-hook "systemctl reload apache2"

Now again do a dry run by simulating the renewal command as shown below.

# Simulate renewal command
sudo certbot renew --dry-run

It should run successfully to ensure that the certificates will be automatically renewed before the expiry.

Install Webmin

In this step, we will install Webmin using the official repository on both Debian and non-Debian based systems. We can install Webmin using the Webmin APT repository on Ubuntu as shown below. I have used the nano editor for demonstration purposes. You can use any editor of your choice.

# Add repository
sudo nano /etc/apt/sources.list

# Add these lines at last
deb http://download.webmin.com/download/repository sarge contrib
deb http://webmin.mirror.somersettechsolutions.co.uk/repository sarge contrib

# Save and exit the editor

Save the file using the Nano text editor by pressing CTRL + O, then press Enter to write the file. Press CTRL + X to close the editor.

Install the GPG key as shown below. We need the GPG key to trust the repository.

# Navigate to your preferred directory
cd ~

# Download the GPG Key
wget http://www.webmin.com/jcameron-key.asc

# Add the Key
sudo apt-key add jcameron-key.asc

# Output
OK

Now we can install the most recent version of Webmin as shown below.

# Refresh the packages index
sudo apt-get update

# Install Webmin
sudo apt-get install webmin -y

# Installation logs
Setting up webmin (1.941) ...
Webmin install complete. You can now login to https://hostname:10000/
as root with your root password, or as any user who can use sudo
to run commands as root.
Processing triggers for systemd (245.4-4ubuntu3) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for mime-support (3.64ubuntu1) ...

Test Webmin

You can test the Webmin in case port 10000 is open, else simply skip this section and continue with the next section.

We can directly access the Webmin using the URL - https://hostname:10000 OR https://xx.xx.xx.xx:10000 in case port 10000 is opened. Make sure to replace the hostname with your server/system hostname OR xx.xx.xx.xx with your server/system IP. It will show the security risk warning as shown in Fig 1.

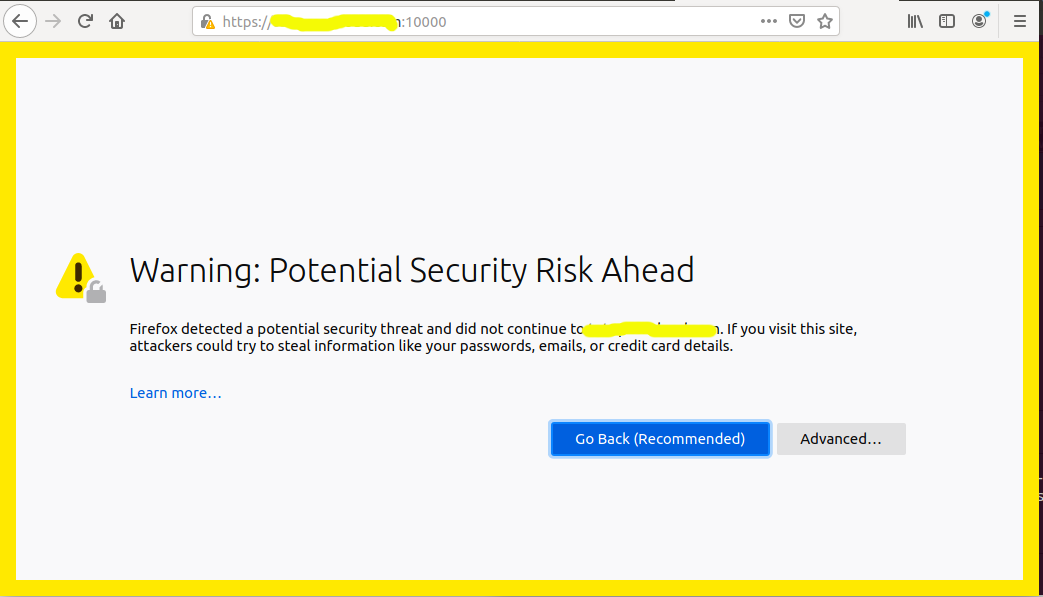

Install Webmin With Apache On Ubuntu 20.04 LTS - Security Warning

Fig 1

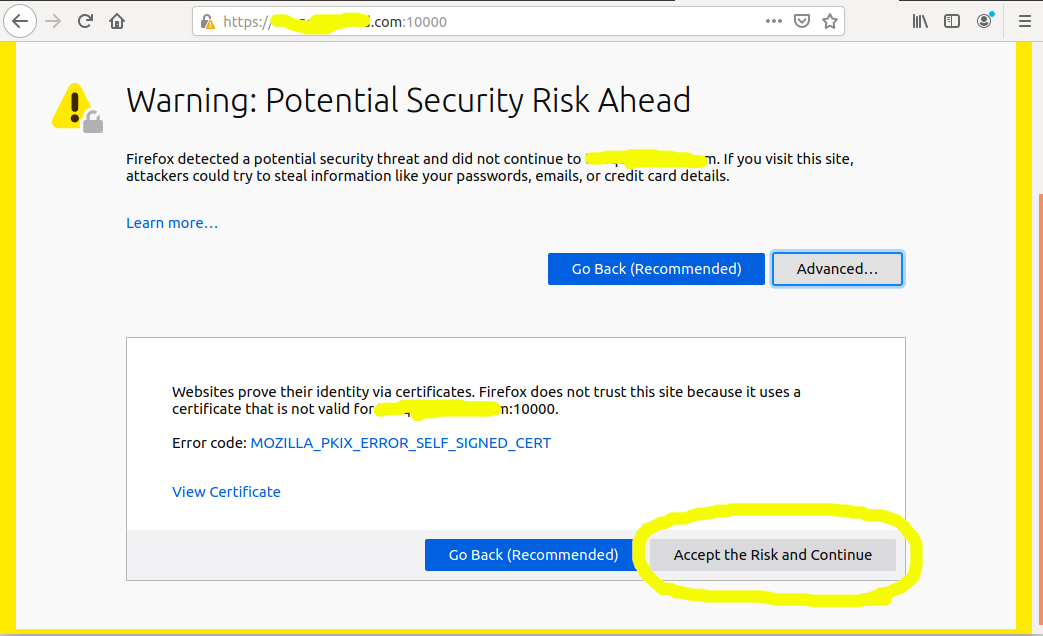

Accept the risk and continue to access Webmin as shown in Fig 2.

Install Webmin With Apache On Ubuntu 20.04 LTS - Accept Risk

Fig 2

It will show the login screen as shown in Fig 3.

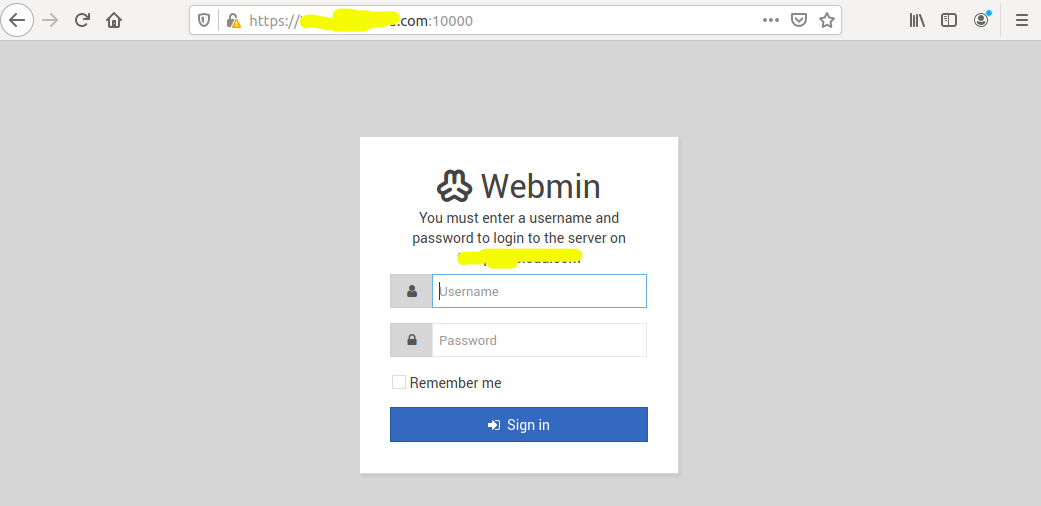

Install Webmin With Apache On Ubuntu 20.04 LTS - Login

Fig 3

Now login to Webmin using your root or sudo user credentials. You can also change the root credentials of Webmin using the command as shown below.

# Change Webmin password
sudo /usr/share/webmin/changepass.pl /etc/webmin <username> <password>

# Example
sudo /usr/share/webmin/changepass.pl /etc/webmin root strongpassword

The above command will change the root user password for Webmin. Now login to your Webmin. It will show the dashboard as shown in Fig 4.

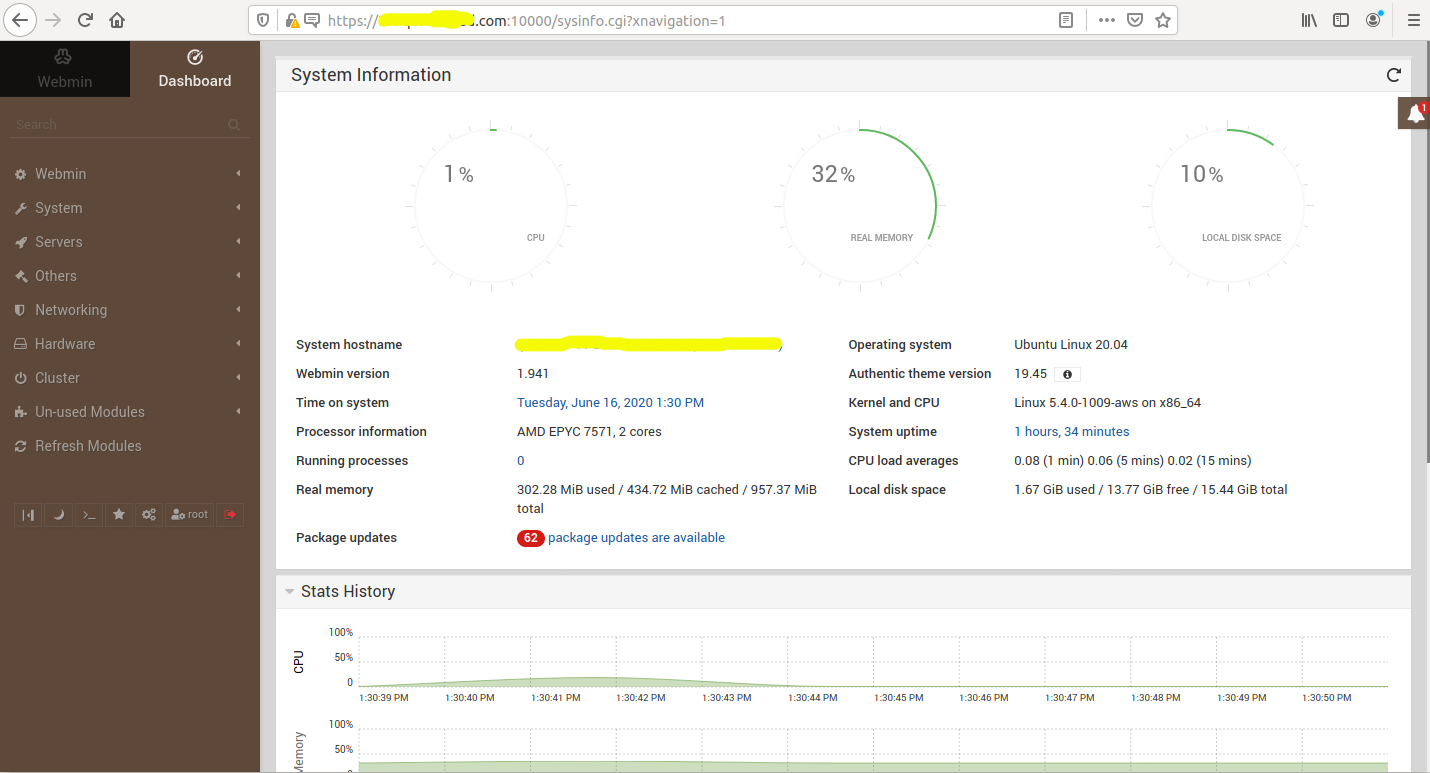

Install Webmin With Apache On Ubuntu 20.04 LTS - Dashboard

Fig 4

Reverse Proxy For Webmin - Primary Domain

We will access the Webmin by configuring reverse proxy on port 80/443 as a regular web app by configuring the webserver. This will avoid opening an additional port for Webmin i.e. 10000 and maintaining SSL certificate for Webmin. It can be done for the Apache Web Server as shown below.

# Update SSL Virtual Host
sudo nano /etc/apache2/sites-available/example.com-le-ssl.conf

# Content
<IfModule mod_ssl.c>
<VirtualHost *:443>
ServerName example.com
ServerAlias www.example.com
ServerAdmin admin@example.com

ProxyPass / http://localhost:10000/
ProxyPassReverse / http://localhost:10000/

ErrorLog /var/www/example.com/logs/error.log
CustomLog /var/www/example.com/logs/access.log combined

SSLCertificateFile /etc/letsencrypt/live/example.com/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/example.com/privkey.pem
Include /etc/letsencrypt/options-ssl-apache.conf
</VirtualHost>
</IfModule>

# Save and exit the editor

You must enable the proxy_http module of the Apache Web Server as shown below.

# Enable Proxy
sudo a2enmod proxy_http

# Test configuration
sudo apache2ctl configtest

# Reload Apache
sudo systemctl reload apache2

Now configure Webmin to accept connections from Apache as shown below. Also, make sure to use the FQDN or the domain name used to access the website. We can configure Webmin for the primary domain as shown below.

# Update config
sudo nano /etc/webmin/config

# Add at last
.....
.....
referers=example.com

# Save and exit the editor

Update miniserv
sudo nano /etc/webmin/miniserv.conf

# Configure SSL
...
ssl=0
...
...
ssl_redirect=0

# Save and exit the editor

# Restart Webmin
sudo systemctl restart webmin

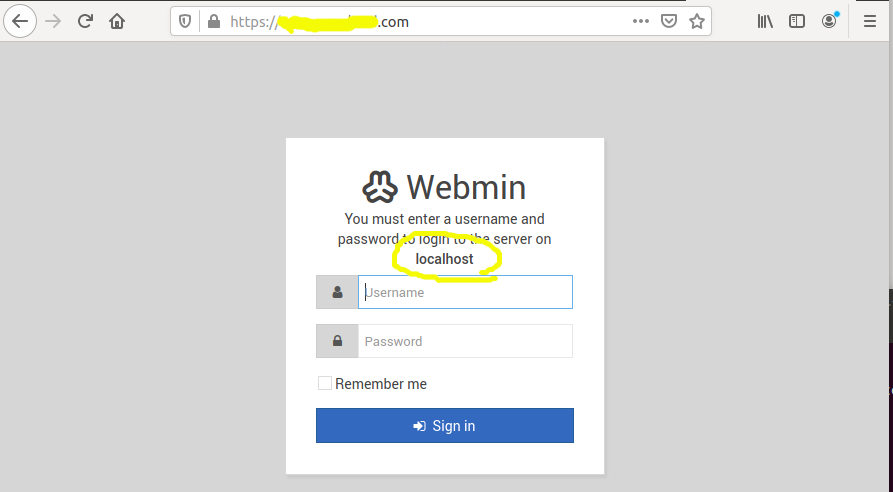

Now we can access Webmin using the primary domain by redirecting to https://www.example.com. It will show the login screen as shown below.

Install Webmin With Apache On Ubuntu 20.04 LTS - Localhost

Fig 5

The webmin shows the hostname as localhost as highlighted in Fig 5 since we have used the same while updating the Virtual Host. Now again update the virtual host using the domain name and refresh Webmin as shown below.

# Update SSL Virtual Host
sudo nano /etc/apache2/sites-available/example.com-le-ssl.conf


# Content
-----
ServerAdmin admin@example.com

ProxyPass / http://www.example.com:10000/
ProxyPassReverse / http://www.example.com:10000/

ErrorLog /var/www/example.com/logs/error.log
-----

# Save and exit the editor

# Test configuration
sudo apache2ctl configtest

# Reload Apache
sudo systemctl reload apache2

# Update Webmin config
sudo nano /etc/webmin/config

referers=www.example.com

# Save and exit the editor

# Restart Webmin
sudo systemctl restart webmin

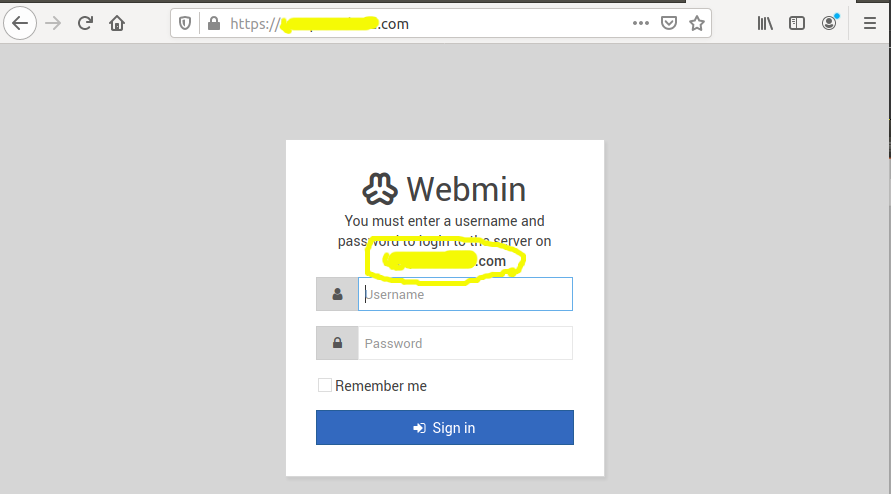

The Login Page of Webmin should reflect the domain name as shown in Fig 6.

Install Webmin With Apache On Ubuntu 20.04 LTS - Hostname

Fig 6

Reverse Proxy For Webmin - Subdomain

We must update the SSL certificate in order to support the subdomain. It can be done using the command as shown below. Let's Encrypt allows up to 100 domains for a single SSL certificate.

# Install Certificate - Syntax - Single Domain
sudo letsencrypt --apache -d example.com,www.example.com,sub1.example.com --email admin@example.com

We can configure the Apache server to access the Webmin over a subdomain. In this way, we can access the website over the main domain and access the Webmin over a subdomain. It can be done for the Apache Web Server as shown below.

# Update SSL Virtual Host
sudo nano /etc/apache2/sites-available/sub1.example.com-le-ssl.conf

# Content
<IfModule mod_ssl.c>
<VirtualHost *:443>
ServerName example.com
ServerAlias sub1.example.com
ServerAdmin admin@example.com

ProxyPass / http://sub1.example.com:10000/
ProxyPassReverse / http://sub1.example.com:10000/

ErrorLog /var/www/example.com/logs/error.log
CustomLog /var/www/example.com/logs/access.log combined

SSLCertificateFile /etc/letsencrypt/live/example.com/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/example.com/privkey.pem
Include /etc/letsencrypt/options-ssl-apache.conf
</VirtualHost>
</IfModule>

# Save and exit the editor

# Test configuration
sudo apache2ctl configtest

# Enable subdomain
sudo a2ensite sub1.example.com-le-ssl

# Reload Apache
sudo systemctl reload apache2

We also need to configure Webmin to accept connections from Apache as shown below. We can configure Webmin for the subdomain as shown below.

# Update config
sudo nano /etc/webmin/config

# Add at last
.....
.....
referers=sub1.example.com

# Save and exit the editor

Update miniserv
sudo nano /etc/webmin/miniserv.conf

# Configure SSL
...
ssl=0
...
...
ssl_redirect=0

# Save and exit the editor

# Restart Webmin
sudo systemctl restart webmin

Now we can access Webmin using the subdomain URL - https://sub1.example.com.

Reverse Proxy For Webmin - Subdirectory

We can configure the Apache server to access the Webmin over the subdirectory. In this way, we can access the website over the main domain and access the Webmin over the sub URL. It can be done for the Apache Web Server as shown below.

# Update SSL Virtual Host
sudo nano /etc/apache2/sites-available/example.com-le-ssl.conf

# Content
<IfModule mod_ssl.c>
<VirtualHost *:443>
ServerName example.com
ServerAlias www.example.com
ServerAdmin admin@example.com

ProxyPass /webmin/ http://www.example.com:10000/
ProxyPassReverse /webmin/ http://www.example.com:10000/

DocumentRoot /var/www/example.com/html
<Directory /var/www/example.com/html>
Options -Indexes +FollowSymLinks
DirectoryIndex index.php
AllowOverride All
Require all granted
</Directory>

ErrorLog /var/www/example.com/logs/error.log
CustomLog /var/www/example.com/logs/access.log combined

SSLCertificateFile /etc/letsencrypt/live/example.com/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/example.com/privkey.pem
Include /etc/letsencrypt/options-ssl-apache.conf
</VirtualHost>
</IfModule>

# Save and exit the editor

# Test configuration
sudo apache2ctl configtest

# Reload Apache
sudo systemctl reload apache2

We also need to configure Webmin to accept connections from Apache as shown below. We can configure Webmin for the subdirectory as shown below.

# Update config
sudo nano /etc/webmin/config

# Add at last
.....
.....
relative_redir=0
referers=www.example.com
webprefix=/webmin
webprefixnoredir=1

# Save and exit the editor

Update miniserv
sudo nano /etc/webmin/miniserv.conf

# Configure SSL
...
ssl=0
...
...
ssl_redirect=0

# Save and exit the editor

# Restart Webmin
sudo systemctl restart webmin

Now we can access Webmin using the subdirectory URL - https://www.example.com/webmin/.

Summary

This tutorial provided the steps required to install Webmin and access it over the primary domain, subdomain, and subdirectory by configuring the Apache Web Server as a reverse proxy.

Write a Comment

Click on the captcha image to get new code.
Discussion Forum by DISQUS
